USB-422/485-Mini/R
| Quantity | Unit price |
|---|---|
| To 3 |
€129.00
|
| To 9 |
€118.00
|
| To 49 |
€116.00
|
| To 99 |
€111.00
|
| From 100 |
€109.00
|
Available, delivery time: 1-3 days
-
Accessories
2
Skip product gallery
USB cable 3mOur converters are shipped with 1,8m USB cable. In case this is not enough, buy this 3m USB cable.
Regular price: €3.00
RS-422 (4 wire) plug casePlug case for RS-422 (4 wire) plug-inAccessories to the this converters:USB-422-Mini
Regular price: €9.80
Product information "USB-422/485-Mini/R"
The USB-485-Mini/R changes signals between USB and RS-485. The device is specially designed for the two wire RS-485-bus and preferably for the stationary employment. The shippment includes a clip for mounting on a DIN rail.
There are no confusing attachment and configuration settings.
The attachment is not complicated and debugging is simple in case of communication problems.
The isolation between USB and RS-485 protects connected devices from overvoltage (i. e. lightning) and bridges earth differences of potential.
The small size and low power consumption of the USB-485-Mini/R makes usage also on mobile computers possible.
For the RS-485 plug you can get a casing if needed to build your own connection cord.
Technical Data
- RS-485: 2-wire, up to 32 bus participants

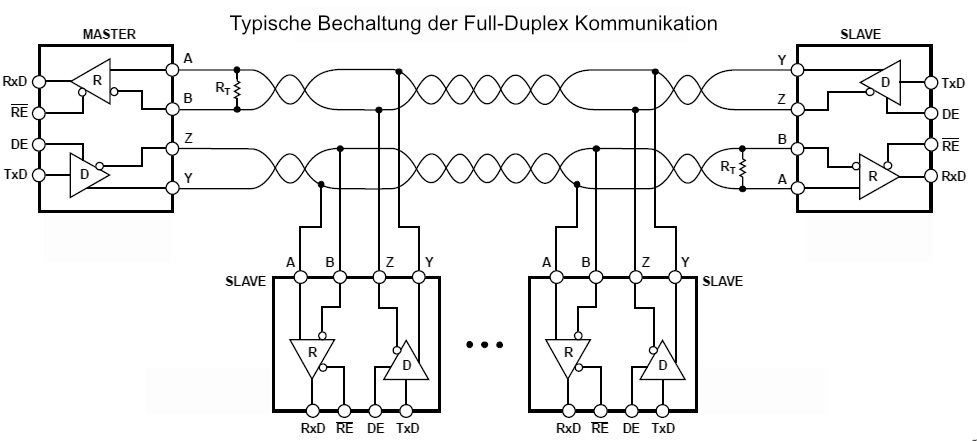

- RS-422: 4-wire
- Data Rate : up to 3 MBit/s
- Cable Length : up to 2000m (at 128 kBit/s)
- Power Consumption: 95 mA (via USB port) no additional current supply necessarily
- Opto Uncoupled: 2500 V
- Size: 24x41x56 (without plug)
Delivery Content
- Converter
- Pluggable terminal screw
- USB cable 1,8m
- Mounting clip for DIN rail incl. screws
